LACIS itself is a vertically oriented laminar flow tube. Self built optical particle sizers are installed at its outlet (Kiselev et al. (2005) and Clauss et al. (2013) for measurements above and below 0°C, respectively). Monodisperse particles are inserted into LACIS such that they are confined to the center line, surrounded by sheath air. Temperatures and humidities of aerosol and sheath air flows as well as the wall temperatures are thoroughly controlled. In LACIS, RHs up to above 99% can be adjusted, and particle hygroscopic growth for the respective RHs can be determined.

Alternatively, conditions can be such that super-saturation occurs, which then enables the examination of particle activation to cloud droplets. For some experiments, LACIS is used in combination. Sometimes, also a HTDMA (Hygroscopicity Tandem Differential Mobility Analyzer, see here) is used to complete the dataset.

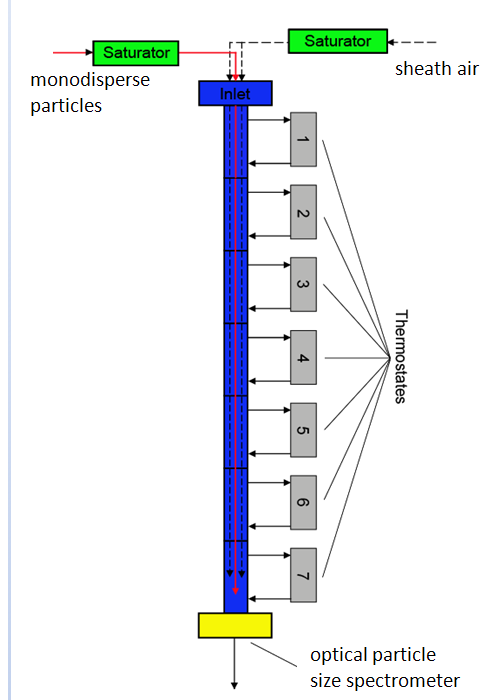

For examinations on immersion freezing (ice particle growth), the 7m long version of LACIS is used (see sketch). Particles are activated to cloud droplets, first, and are then cooled down. The fraction of frozen droplets is determined at the outlet by measuring cross-polarized light (Clauss et al. (2013)).

Clauss et al. (2013), Application of linear polarized light for the discrimination of frozen and liquid droplets in ice nucleation experiments, Atmos. Meas. Tech., 6, 1041-1052.
Hartmann et al. (2011), Homogeneous and heterogeneous ice nucleation at LACIS: Operating principle and theoretical studies, Atmos. Chem. Phys., 11, 1753–1767.
Kiselev et al. (2005), White-light optical particle spectrometer for in situ measurement of condensational growth of aerosol particles, Appl. Opt., 44 (22), 4693-4701.
Stratmann et al. (2004), Laboratory studies and numerical simulations of cloud droplet formation under realistic super-saturation conditions, J. Atmos. Oceanic Technol., 21, 876-887.
